Lọc tách dầu máy nén khí Ingersollrand
Thông tin kỷ thuật

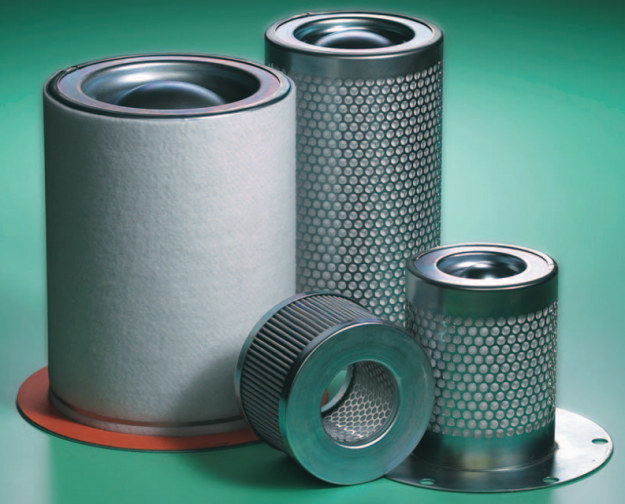

Ingersoll-rand Oil separator
1.Filtering precision:0.1μm.
2.Oil contained in compressed is below 3ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 3500h-6000h.
5. Initial pressure differential≤0.02Mpa.
6.Filter element of air oil separator is made by the thin
fiberglass,which imported from HV&Lydall company
|
Model |
Flow rate m3/min/0.7mpa |
Orginal P/N |
D mm |
H mm |
OEM model |
|
Ml-22 |
3 |
39831888 54955442 |
194 |
226 |
8262681694 8166082600 |
|
M-22 |
3 |
39751391 |
194 |
216 |
8261681694 |
|
30S |
3 |
42855486 |
194 |
216 |
8261681694 |
|
UPS22 |
3 |
54749247 |
135 |
305 |
8360581635 |
|
M-37 |
6 |
92754688 |
194 |
232 |
8263281694 |
|
ML37 |
6 |
39831888 |
194 |
232 |
8263281694 |
|
50S |
6 |
39831888 |
194 |
232 |
8263281694 |
|
EP100 |
10 |
42841239 39863857 36876472 |
336 335 |
356 356 |
8365683636 8365683635 |
|
M55 |
10 |
46501073 39737473 92871326 |
299
|
190 |
8169082699 92754696 |
|
P600SCU |
|
5601513 42862077 |
300 301 |
190 190 |
8169083600 8169083601 |
|
75S |
10 |
39894597 92722750 |
302 |
190 |
8169083602 |
|
EP200 |
20 |
42841247 |
375 |
457 |
8465783675 |
|
M90 |
20 |
54509427 |
374 |
455 |
8465583674 |
|
900 |
|
89285761 54509435 |
360 535 |
500 450 |
8560083660 8465085635 |
|
150S |
20 |
39863865 39863840 |
375 240 |
455 275 |
8465583675 8267582640 |
|
ML-250 |
40 |
39831920 39760590 |
431 432 |
412 412 |
8461284631 8461284632 |
|
M-250 P600 |
40 |
39890600 54509500 |
430 430 |
444 412 |
8464484630 8461284630 |
|
VEP400SCU VHE750
|
11 6 |
22219174 92699198 |
431 305 |
460 250 |
8466084631 8265083605 |
|
VHP700E P1050E EPE450 |
20 29 60 |
39863899 39863881 92062132 |
535 534 440 |
465 464 862 |
8466585635 8466485634 866284640
|
